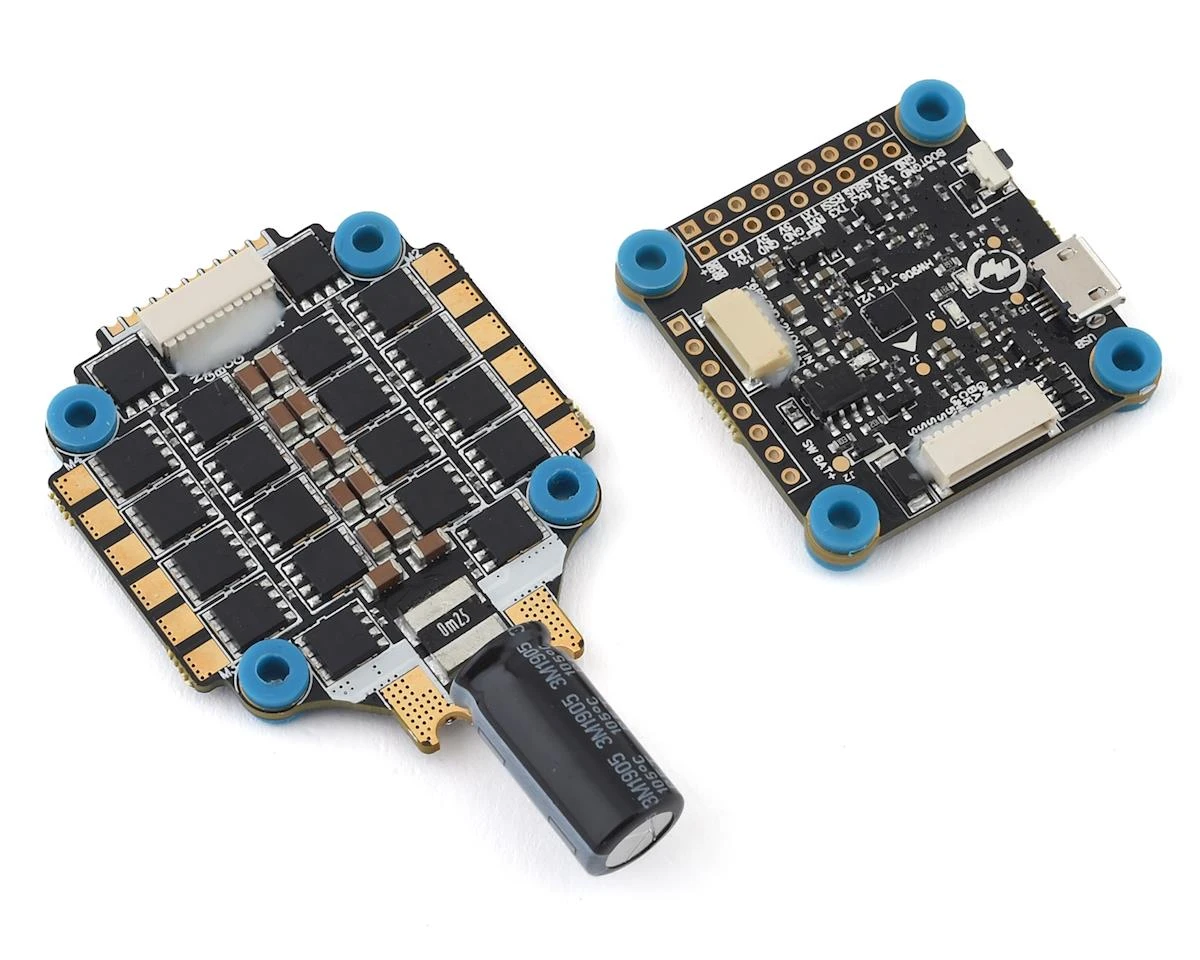

The Hobbywing XRotor Micro 4-in-1 ESC and F4 G3 Flight Controller Combo is composed of HWA31003001 & HWA30902063.

Flight Controller Features:

STM32 F405 MCU.
Board load 12V BEC, the output current can reach 2A. It can supply power for graphic transmission, 12V LED lamp and other equipment
The SPI ICM-20602 which integrates accelerometer and gyro (with the running frequency can be set to 32KHz) is adopted
Onboard OSD microchip which supports the DMA mode allows users to adjust its parameters via the Betaflight software (Note: the OSD is controlled by the F4 MCU)
The FC which supports Betaflight firmware & allows parameter adjustment via Betaflight software is more applicable to FPV race
F-card which can record and save more flight/black box data allows users to adjust thesetup of their aircraft easily
Compatible with various receivers like SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM and etc
LED strip signal output port allows users to adjust the color & flash mode of the LED strip via the FC
Volt/Amp monitoring port allows users to check the battery voltage (BAT port) and current (CRT port , extra current meter is needed)
Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft
Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters
Switch module of board load graphic transmission(VTX) can use remote contorl to control switch of graphic transmission

ESC Features:

BLHeli_32 DShot 1200 ESC
Dual 5V BEC Outputs
Voltmeter Module
Rubber Isolated Mounts

Flight Controller Specifications:

Specifications:
Continuous Current: 60A
Input Voltage: 3s-6s LiPo
BEC Output: 5V & 0.6A
Size (LxWxH): 52x42x6.6mm
Supported Firmware: BLHeli_S32
Weight: 15g

4-in-1 ESC Specifications:

Continuous Current: 60A
Input Voltage: 3s-6s LiPo
BEC Output: 5V & 0.6A
Size (LxWxH): 52x42x6.6mm
Supported Firmware: BLHeli_S32
Weight: 15g

This product was added to our catalog on October 3, 2019
