Hobbywing XRotor BLHeli_S 30 Amp Multi-Rotor Brushless ESC

Home / Electronics / Electric Motors & Esc's / 1/10 Scale / Esc Controllers / Fpv Racing
  • Hobbywing V10-G3 Motor Endbell Set w/Sensor Board (5.5-8.5T) -HOBBYWING Sales hwa30820056
  • Hobbywing XRotor Micro 4in1 ESC & F4 G3 Flight Controller Combo -HOBBYWING Sales hwa38040302
-40%
Hobbywing XRotor BLHeli_S 30 Amp Multi-Rotor Brushless ESC
Hobbywing XRotor BLHeli_S 30 Amp Multi-Rotor Brushless ESC - Image 2
Hobbywing XRotor BLHeli_S 30 Amp Multi-Rotor Brushless ESC -HOBBYWING Sales hwa30901074 1

$12.49 Original price was: $12.49.$7.49Current price is: $7.49.

Buy Now
SKU: 568139 Categories: Electric Motors & Esc's, Electronics, Esc Controllers, Fpv Racing Tag: Hobbywing
  • Effortless solutions, excellent customer care.
  • Quick responses, top-notch service.
  • Efficient and effective customer service, online.
  • Green products, guaranteed.
Browse
  • Batteries
    • Lipo
      • Flight Batteries
        • 3s (11.1v)
  • Electronics
    • Electric Motor Parts
      • Bearings
      • Fans & Heatsinks
      • Sensor Cables
        • Rock Crawlers
    • Electric Motors & Esc's
      • 1/10 Scale
        • Esc Controllers
          • Fpv Racing
        • Esc/motor Combos
      • 1/8 Scale
      • Electronic Speed Controls
        • Airplanes
      • Large Scale
        • Electric Motors
      • Micro
    • Extension Leads
    • Telemetry
      • Sensors
        • Boats
  • Fpv Gear
    • Video Tx & Rx
  • Kits
    • Electric
      • Bind N Fly
        • Mini & Micro
      • Ready To Fly
  • Maintenance
    • Tools
      • Hex Wrenches
        • Single Hex Wrenches
  • Motors & Esc's
  • Parts
    • Esc Parts & Accessories
      • Cars & Trucks
      • Helicopters
    • Replacement Parts
      • Omp Hobby
        • Helicopters
  • Uncategorized
  • Description
  • Reviews (0)

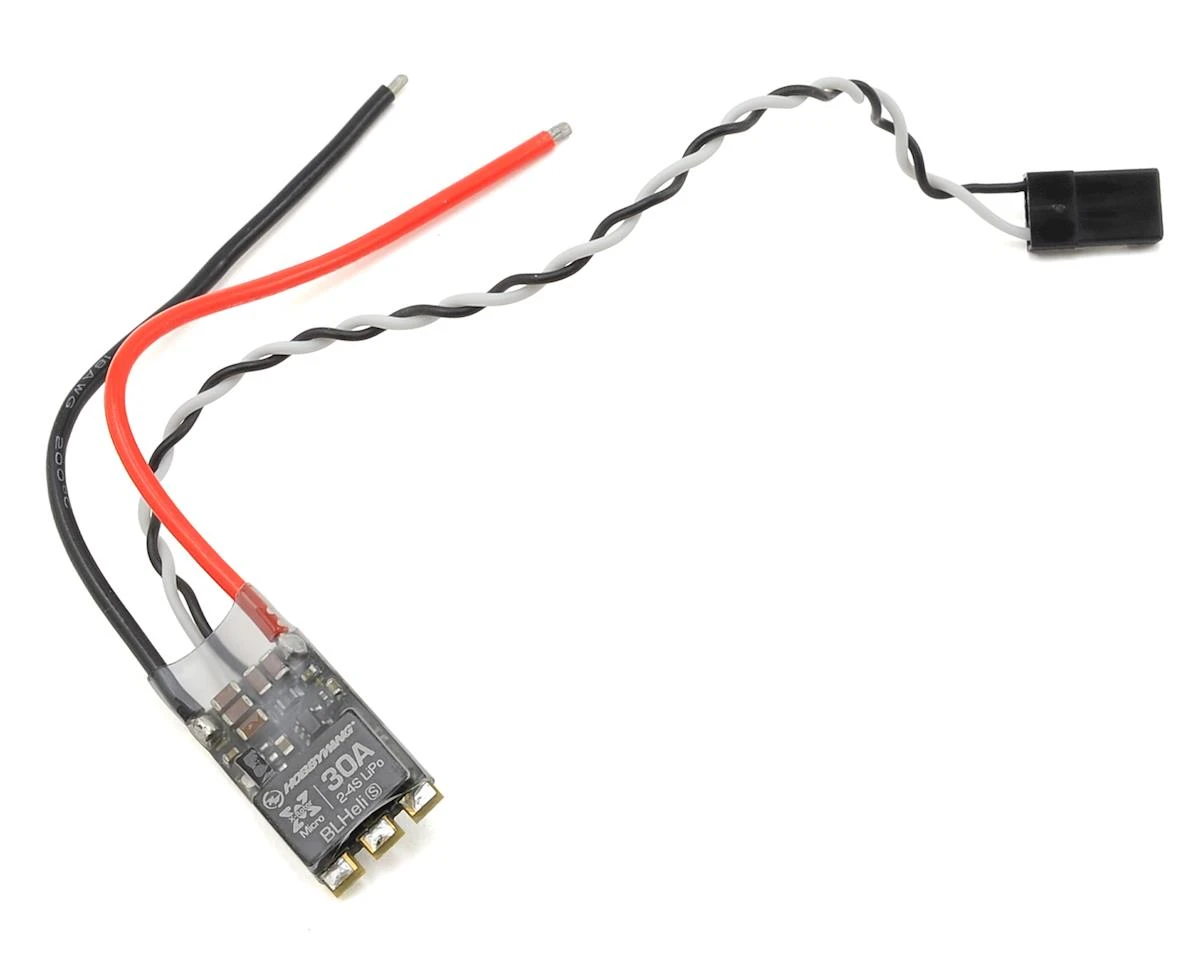

This is the Hobbywing XRotor 30A Micro Brushless Drone ESC with BLHeli_S Firmware.

Features:

  • Super Small & Light architecture
  • F396 48MHz MCU
  • BB2 MCU (EMF8BB21F16G)
  • Premium MOSFETs (Toshiba MOSFETs for 20A & 35A ESCs, Fairchild MOSFETs for 30A ESCs)
  • Ceramic capacitors
  • 3-in-1 drive ICs, 3-ounce copper
  • Ultra high efficiency & rapid response – 4 layers of PCBs and other quality components guarantees less heat.
  • BLHeli_S Firmware Ready – The ESC supports the original BLHeli_S firmware. Users can flash or upgrade the firmware via the signal cable (on ESC) and program 4 ESCs simultaneously after connecting their flight controller to the BLHeli Suite software (if the flight controller uses the CleanFlight or beta flight firmware).
  • Damped Light Mode & OneShot125 Mode Supported
  • Damped light mode improves the motor retardation and allows users to brake the FPV drones more efficiently. Active-freewheeling technology improves driving efficiency, flight time and heat dissipation.
  • Protocol Support:
    • OneShot125 high speed throttle signal and regular throttle signal (within 500Hz) modes
    • Oneshot 42 (41.4-83.3µs)
    • Multishot(5-25µs)
    • Regular PWM (1000-2000µs)throttle signals
  • ESC + Motor combo available

Specifications:
Application:
FPVs with 130-280mm Diagonal
LiPo Power input: 2S-4S
Continuous Current: 30A
Burst Current: 40A
BEC Output: NA
Input wires: 18AWG-100mm* (Red/Black)
Output Wire: Solder tabs (no wires)
Connectors (In/Out): no
Weight / Size: 7g / 24.0×13.9×5.5mm
*Note: All the wire length above is the original length, not the length you see from the outside.

This product was added to our catalog on December 7, 2016
