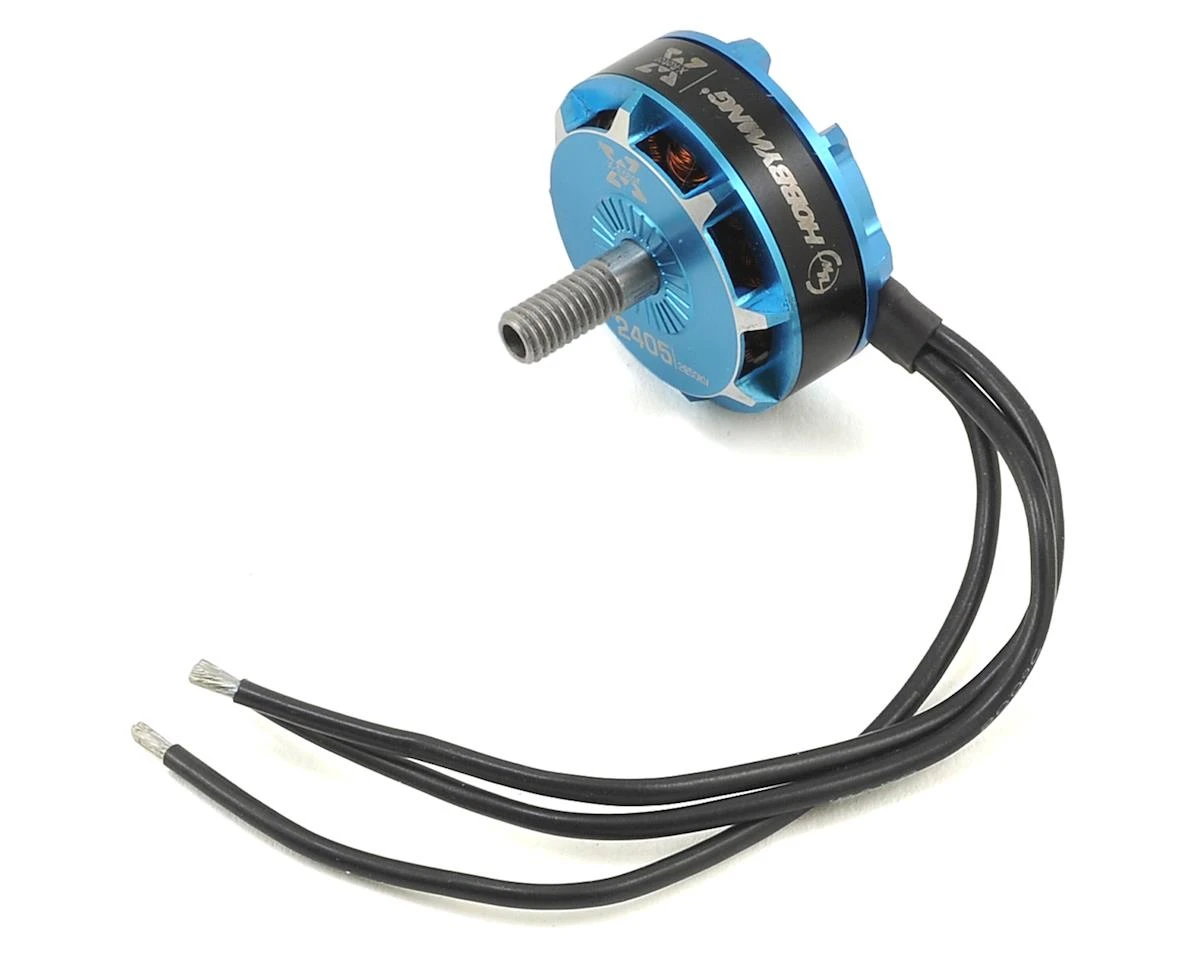

The Hobbywing XRotor 2405 series of FPV Racing Motors feature a handful of great design features that are packed together that offer nothing but incredible performance, and excellent reliability.

Featuring high strength CNC machined aluminum allow frame that incorporates a cross beam structure, & high previsision hollow alloy steel shaft, crash resistance and overall motor durability is a critical design choice. Offering an extra wide but short stator (24mm wide, 5mm height), the disc type structure provides a lower center of gravity compared to other motors, which translates to improved response while in flight. A single piece eight bladed centrifugal fan cools the motor during operation.

Features at a Glance:

24mm Stator Width; 5mm Stator Height – Low CG design
Integrated locking teeth to secure prop even under prop strikes
Integrated cooling fan design
Aluminum Allow motor design – Incredible durability
N54 High Strength Magnets
0.2mm Stator Laminations
4mm Thick Bearings
35.5g AUW

Specifications:
KV: 2850kV
Voltage Input: 3-4s LiPo
No-Load Current (A/10V): 1.8A
Motor Resistance: 0.031 Ohms
Continuous Current: 25A – 420W
Slot/Plot Count: 12/14
Motor/Shaft Diameter: 30.8mm – 5mm
Weight: 35.5g
