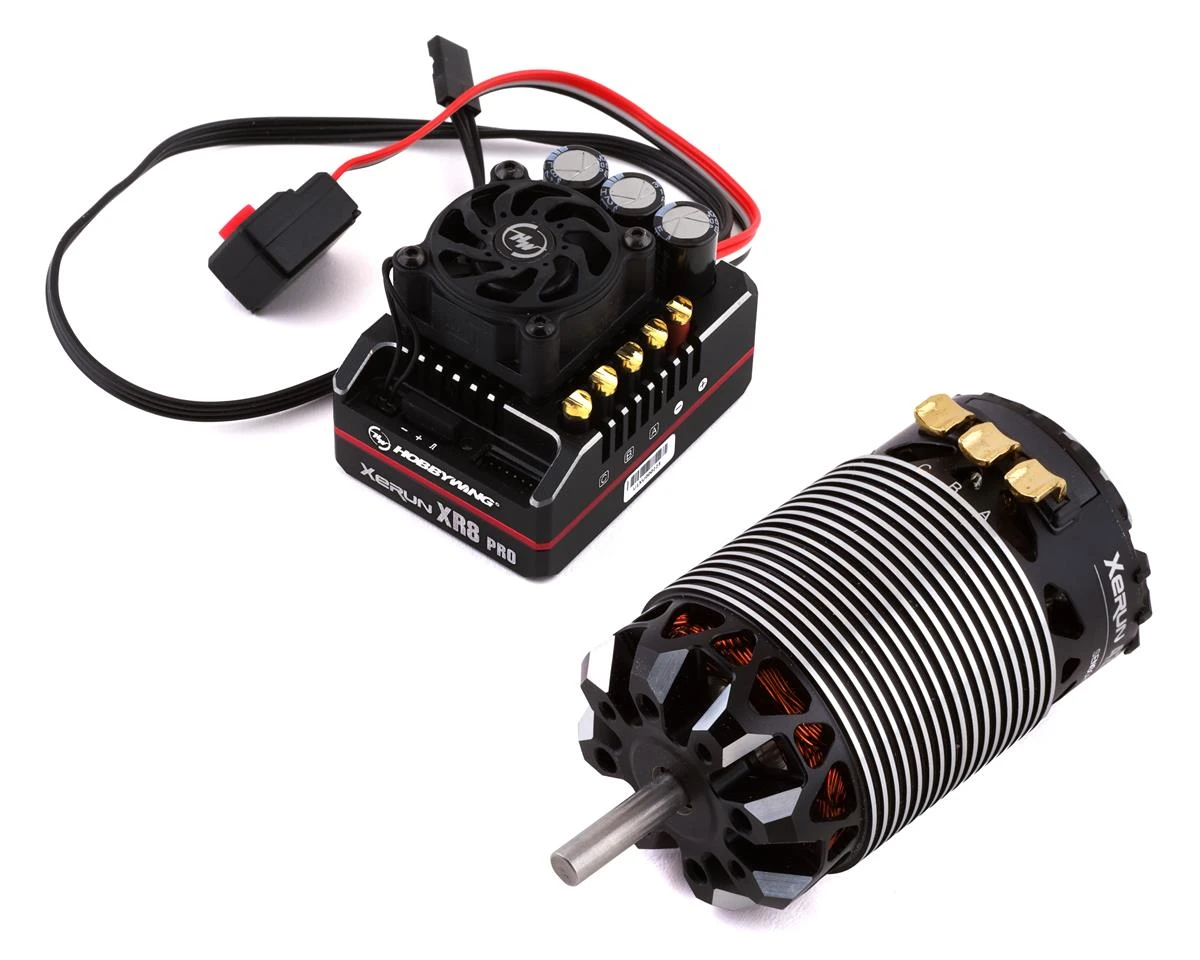

Hobbywing Xerun XR8 Pro Brushless ESC/G3 Motor Combo (2200kV)

Hobbywing XR8 Pro 1/8 Competition Brushless ESC/G3 Motor Combo with 2200Kv Motor.

Features:

• ESC:
• Built-in 5 common profiles, suitable for all 1/8 Racing, select and use instantly – Zero timing Blinky mode, 1/8 Off-Road Racing, 1/8 On-Road Racing, 1/8 GT Racing, 1/8 Sport mode.
• 29 built-in adjustable parameters to set various power requirements.
• The parameters can be imported and exported, which is convenient for drivers to communicate with and learn from each other.
• Supports firmware updates to enjoy the latest functions. The multi-function LCD programming box or OTA Programmer is needed – must be purchased separately.
• Supports 48 degrees Boost and Turbo timing.
• When matching with XERUN 1/8 motor (G3 4268/4274) motor, the Max. Speed can be promoted by 50%.
• Multiple function: Low voltage protection, thermal protection of the ESC, motor and capacitor.
• Built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step: 0.1V) for use with servos & other devices that operate at different voltages.
• The built-in reverse connection protection circuit of the ESC to avoid damage to the ESC due to accidental reverse polarity connection.
• Temperature and RPM of the ESC and motor by HW Link (OTA Programmer – sold separately), which is convenient for driver to analyze the running of the power system.
• The record function of real-time data: Open this function by connecting the ESC with HW Link through OTA Programmer.  it allows to check throttle quantity, Voltage, Current, Temperature, RPM and other data in real time, and obtain the running status of the ESC and motor.
• Motor:
• Suitable for 1/8th SCT, Buggy and Touring Car (2200Kv recommended for 1/8 off road)
• Turbo Timing Technology
• Full Sensored mode (when paired with XR8 SCT ESC or XR8 plus ESC)
• Adjustable Timing (Bi-Directional) 20-40 degrees
• Advanced Hall Sensor System
• 4-pole-8-magnet “Staggered Pole” rotor – HOBBYWING Patented design
• Guarantees users the effective heat dissipation and dust prevention
• The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability

Specifications:

• ESC:
• Model: XR8 PRO
• Cont./Peak Current: 200A/1080A
• Motor Type: Sensored / Sensorless Brushless Motor
• Main Applications: 1/8th Scale On-road, Buggy, Truggy for High-level Races
• Motor Limit: Motor Limit with 4S LiPo/12S NiMH: 4268/4274 Size Motor?KV?3000;
• LiPo/NiMH Cells: 2-4S LiPo, 6-12 Cells NiMH
• BEC Output: 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A( Switch-mode)
• Cooling Fan: Powered by the stable BEC voltage of 6-8.4V
• Size/Weight: 56.1(L)*42.1(W)*38.6(H)mm/ 114g(w/ wires )
• Programming Port: FAN/PRG Port
• ESC programming: OTA Programmer
• Motor:
• Kv: 2200Kv
• Pole: 4
• LiPo: 2S-6S (4S Max per ESC specs)
• Resistance: 0.0069
• No Load Current: 4.1A
• Size (Diameter x Length): 42x68mm
• Weight: 285g
• Application: 1/8 Off Road

This product was added to our catalog on February 24, 2021
