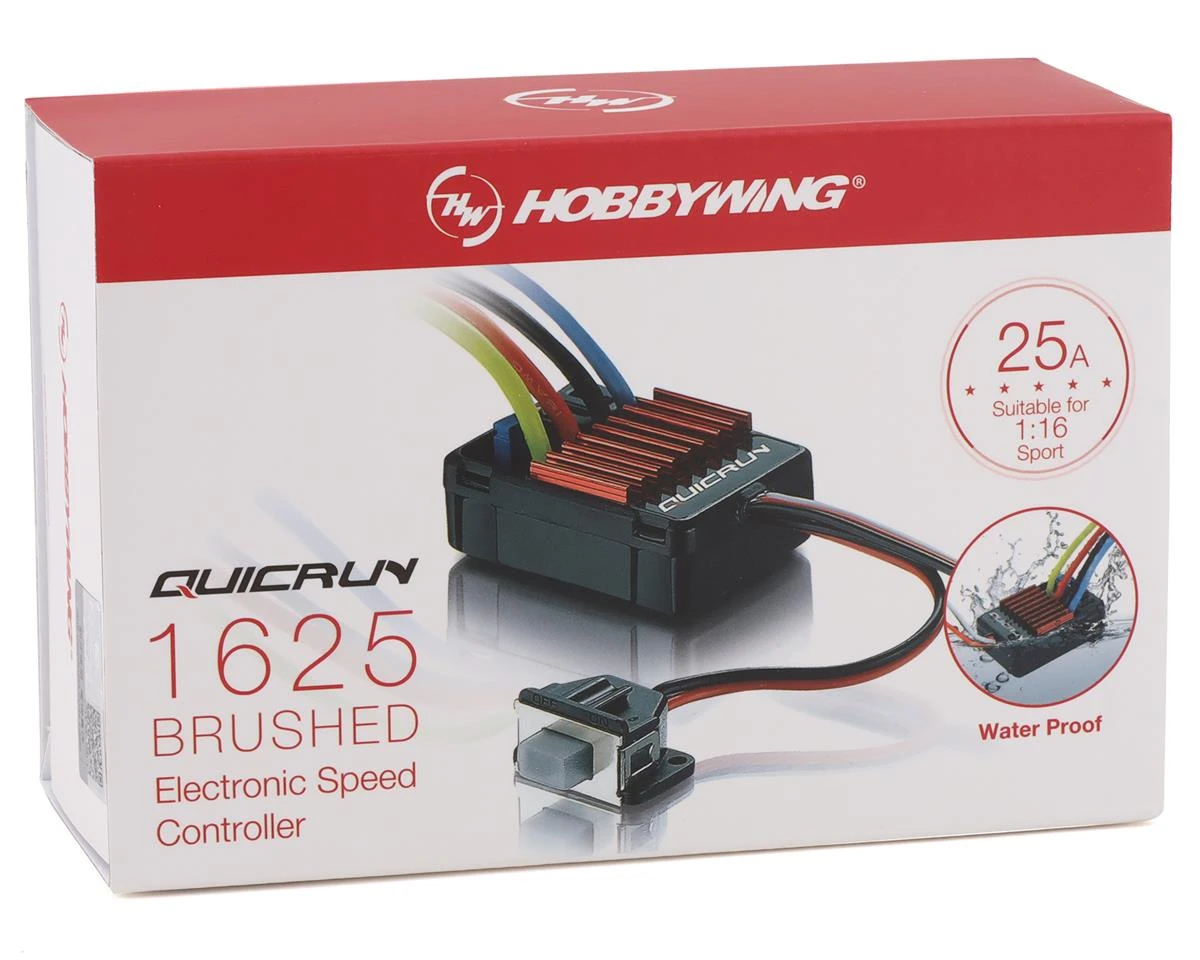

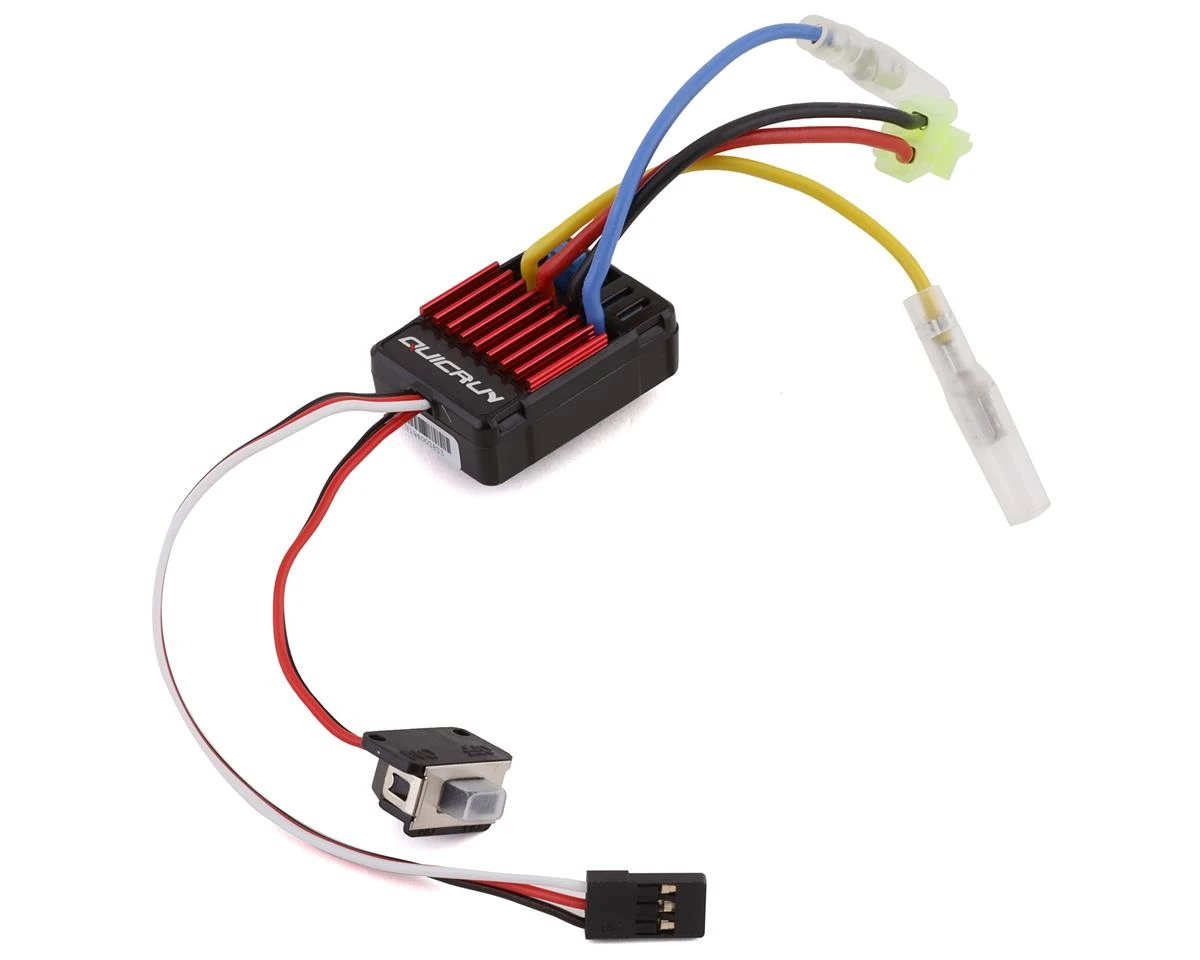

Hobbywing Quicrun 1625 1/18th Scale Brushed ESC

Hobbywing Quicrun 1625 1/18th Scale Brushed ESC.

Features:

• Waterproof and dustproof, suitable for races in all weather conditions.
• Small size with built-in capacitor module.
• Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.
• ESC parameters are easy to set withwith jumpers.
• Multiple protections:
• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection.
• Risk Free Manufacturers limited warranty.

• Cont. Current /Peak Current/ Resistance: 25A/100A/0.003?
• Motor Type Supported: Brushed Motor
• Car Applicable: 1:16 &1:18 On-road/Off-road/Buggy/Monster
• Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
• Brushed Motor Limit:
• 2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM<30000 @7.2V
• 3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM<20000 @7.2V
• BEC Output: 1A/5V (Linear Mode)
• PWM Frequency: 1KHz
• Size/ Weight: 34(L)*24(W)*14(H) / 23.5g
• Running Modes: Forward/Reverse/Brake
