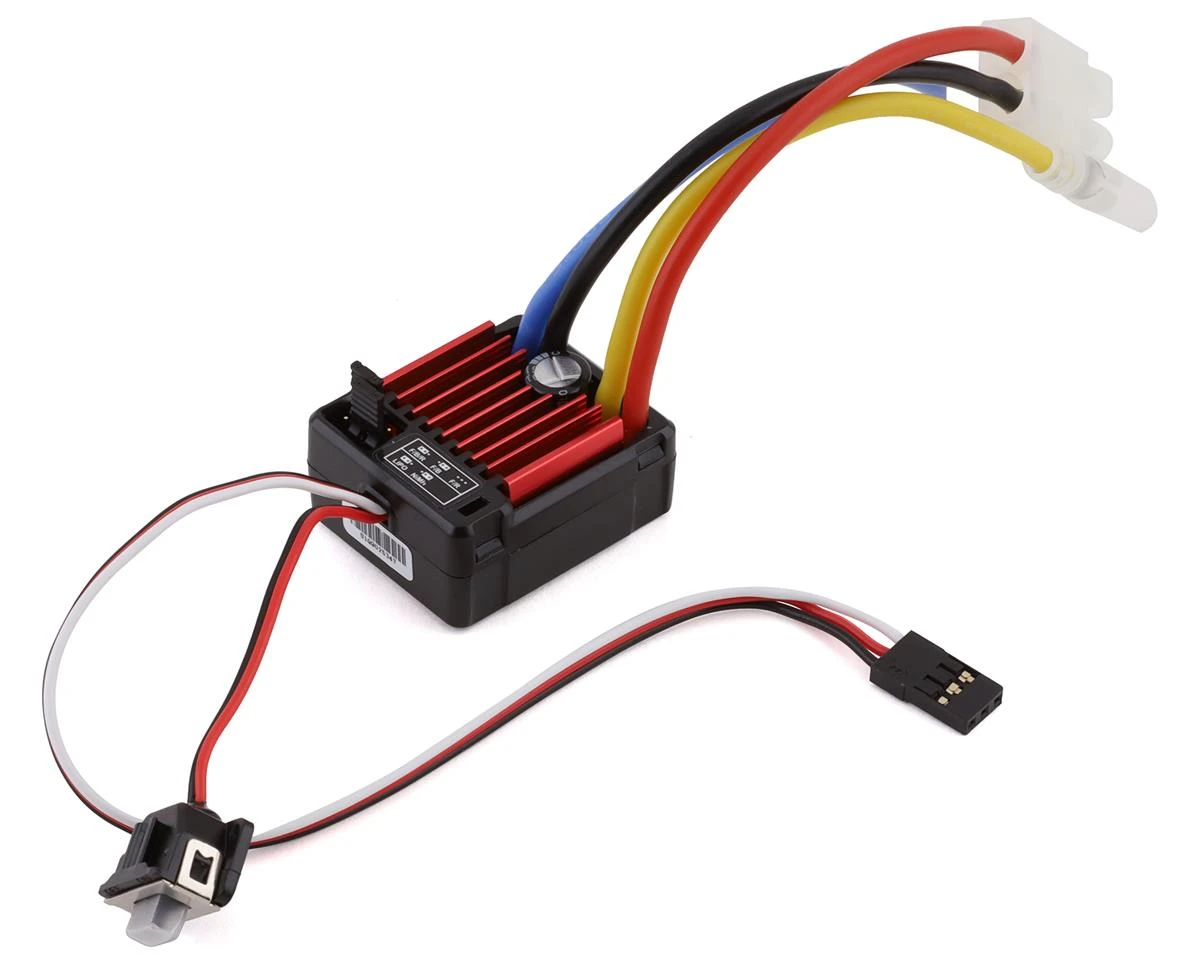

Hobbywing Quicrun 1060 1/10 Brushed ESC

Hobbywing Quicrun 1060 1/10 Brushed ESC

Features:

• Water-proof and dust-proof, suitable for all weather races.
• Small size, with built-in capacitor module.
• Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.
• ESC parameters are easy to set with jumpers.
• Multiple protections:
• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection.
• Risk Free manufacturer’s limited warranty available through Authorized Dealers in North America

Fwd Cont. Current /Peak Current/ Resistance: 60A/360A/0.001?

Rev Cont. Current /Peak Current/ Resistance: 30A/180A/0.002?

Motor Type Supported: Brushed Motor

Application: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank

Suitable Battery: 2-3S LiPo, 6-9 cell NiMH

2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: ?12T, Or RPM<30000 @7.2V

3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: ?18T, Or RPM< 20000 @7.2V

BEC Output: 2A/5V (Switch Mode)

PWM Frequency: 1KHz

Size/ Weight: 35.5(L)*32.18(W)*18(H) / 39g

Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

Cooling Fan: No need
