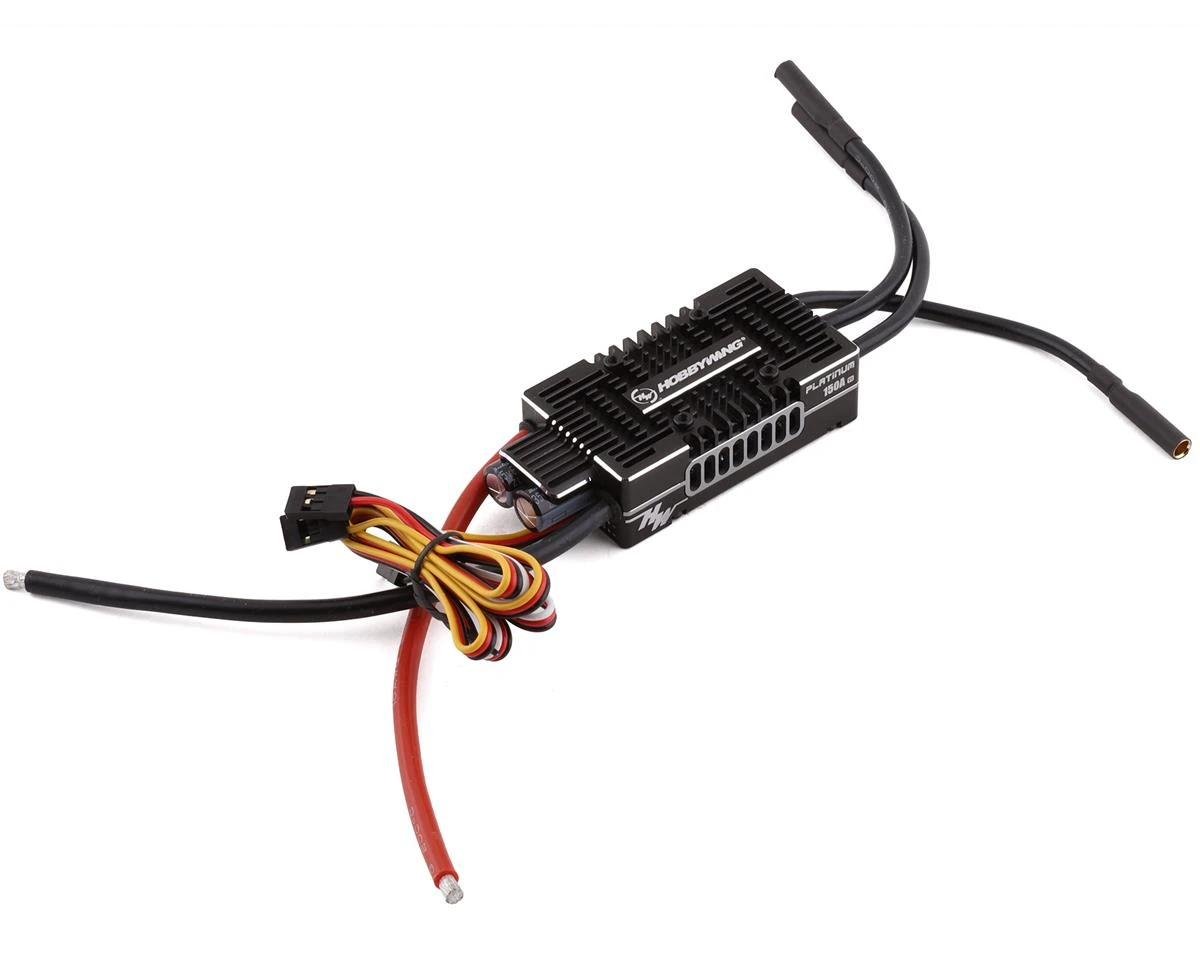

V5 150A Hobbywing Brushless ESC

The Hobbywing Platinum Pro V5 150 Amp ESC is the next level ESC for high performance, advanced programming, and overall capabilities. Using a 32-bit processor combined with advanced algorithms, Hobbywing has maximized performance in the V5 series of Platinum Pro speed controllers. Like all Hobbywing ESCs, users can program various settings to ensure they have the needed features to match their aircraft set up needs.

The Platinum Pro V5 ESC features a built-in and fully programmable BEC. The output voltage is adjustable between 5.4-8.4V in 0.1V steps. To keep up with your demanding electronics, the BEC also has a continuous output current of 10A. For protection, Hobbywing V5 ESC’s feature a start-up protection, current protection, temperature protection, overload protection, throttle signal loss and input voltage protection. These safeties help to give you the needed peace of mind.

Features:

Multi-stage protection functionality
20% stronger BEC compared to V4 series
Programmable through the OTA programmer or LCD program box (both sold separately)
Fast 32 bit processor for efficient algorithm processing
Reduced size & improved current handling compared to V4 series
VBar Control firmware integrated – allowing for VBar telemetry capabilities
Double-sided cooling Structure
Multiple brake modes for fixed wing operation

Specifications:
Application: 500-580 Class Helicopter/Airplane
Input Voltage: 3-8S Lipo
Cont./Peak Current (10s): 150A/180A
(Switch-mode) BEC: 5.4V-8.4V Adjustable (Step: 0.1V), 10A/30A Cont./Peak
Separate Programming Port: For connecting LCD Program Box / OTA Programmer
Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
Output connector: 4.0mm Gold Bullet Connectors (Female)
Size: 83x37x16.5mm
Mounting Holes: M3-3mm, 37.5xZ16.5mm
Weight: 140g
