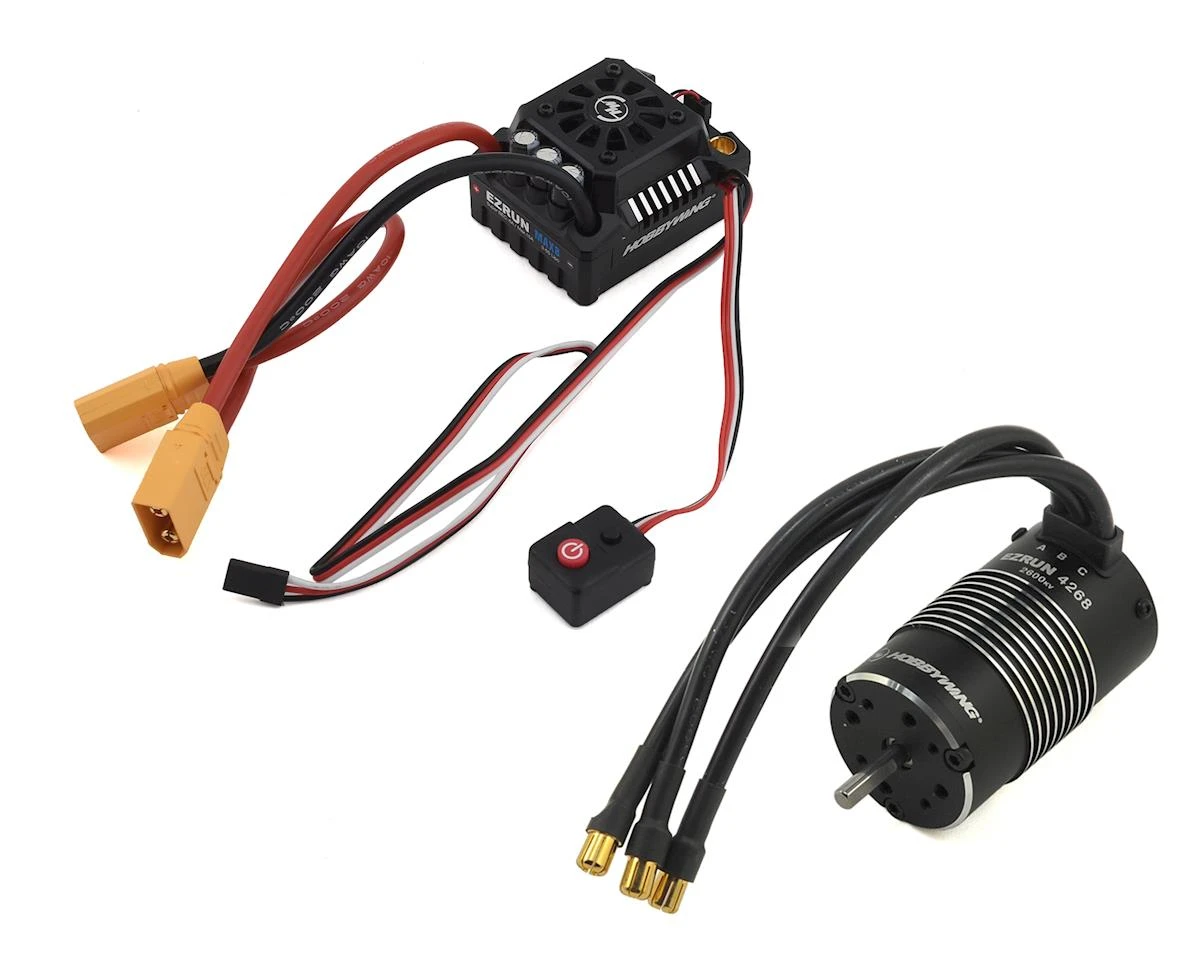

The Hobbywing EZRun Max8 Waterproof Brushless ESC and Motor Combo includes the awesome 4268SL – 2600kV sensorless motor to deliver high torque, fast acceleration response and stable power output for 1/8 scale applications. Special technology for temperature control is implemented by the motor and provides less heat more efficiently (efficiency rate of up to 90%). The EZRun Max8 V3 Waterproof Brushless ESC, with installed XT90 connectors is built with high quality components and loaded with cutting edge firmware.

Features:

ESC:

Waterproof
Sensorless Brushless Operation
6S LiPo Compatible
Dual XT90 Plugs
Includes Program Box

Motor:

4 pole rotor for high torque, fast acceleration response and stable power output.
Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 ESC

Specifications:

ESC:

Continuous Current: 150A
Peak Current: 950A
Plug Type: XT90
Motor Type: Sensorless Brushless
Applications: 1/8 Touring Car, Buggy, Truggy, Monster Truck
Brushless Motor Limit 4S LiPo/12-Cell NiMH: 3000 (4274 size motor)
Brushless Motor Limit 6S LiPo/18-Cell NiMH: 2400 (4274 size motor)
LiPo/NiMH Cells: 3-6S LiPo / 9-18 Cell NiMH
BEC Output: 7.4V Switchable, Continuous current of 6A (Switch mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Size (LxWxH): 59.8x48x36.8mm
Weight: 173.5g
Programming Port: Fan/PRG Port

Motor:

Pole: 4
KV(No-load): 2600
R. (?): 0.0052
Current No-load A: 4.2
Max. Output Power W: 3000
C.at the point of M.O.P *(A): 120
Motor D & L (mm): D=42, L=68
Shaft D & L of the projecting part (mm): D=5, L=18.5
LiPo(S): 2-4
Weight: 343g (12.098oz)
Applicable: 1/8th Buggies/Touring Cars/SCTs

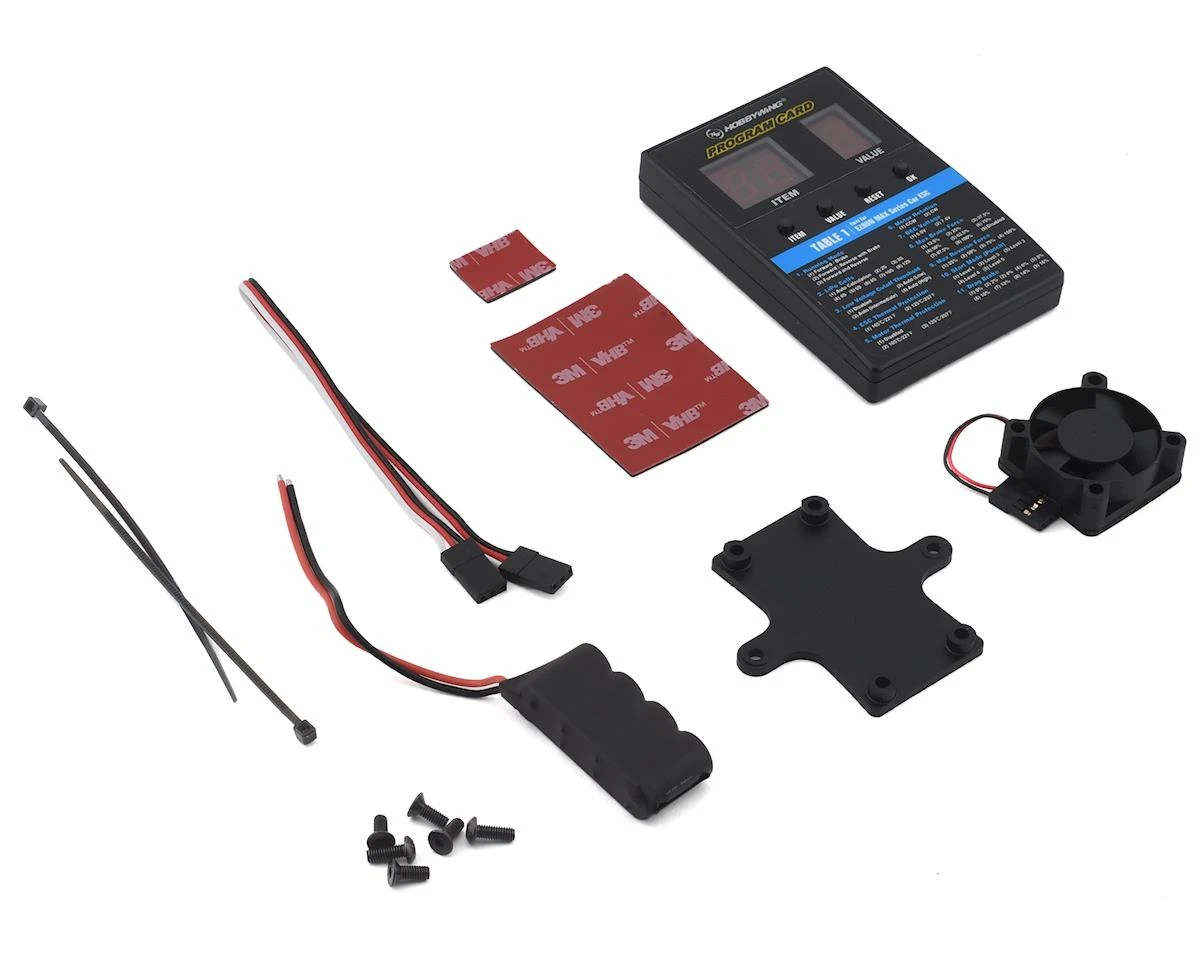

Includes:

EZRun Max8 ESC with XT90 connectors
EZRun LED Program Card

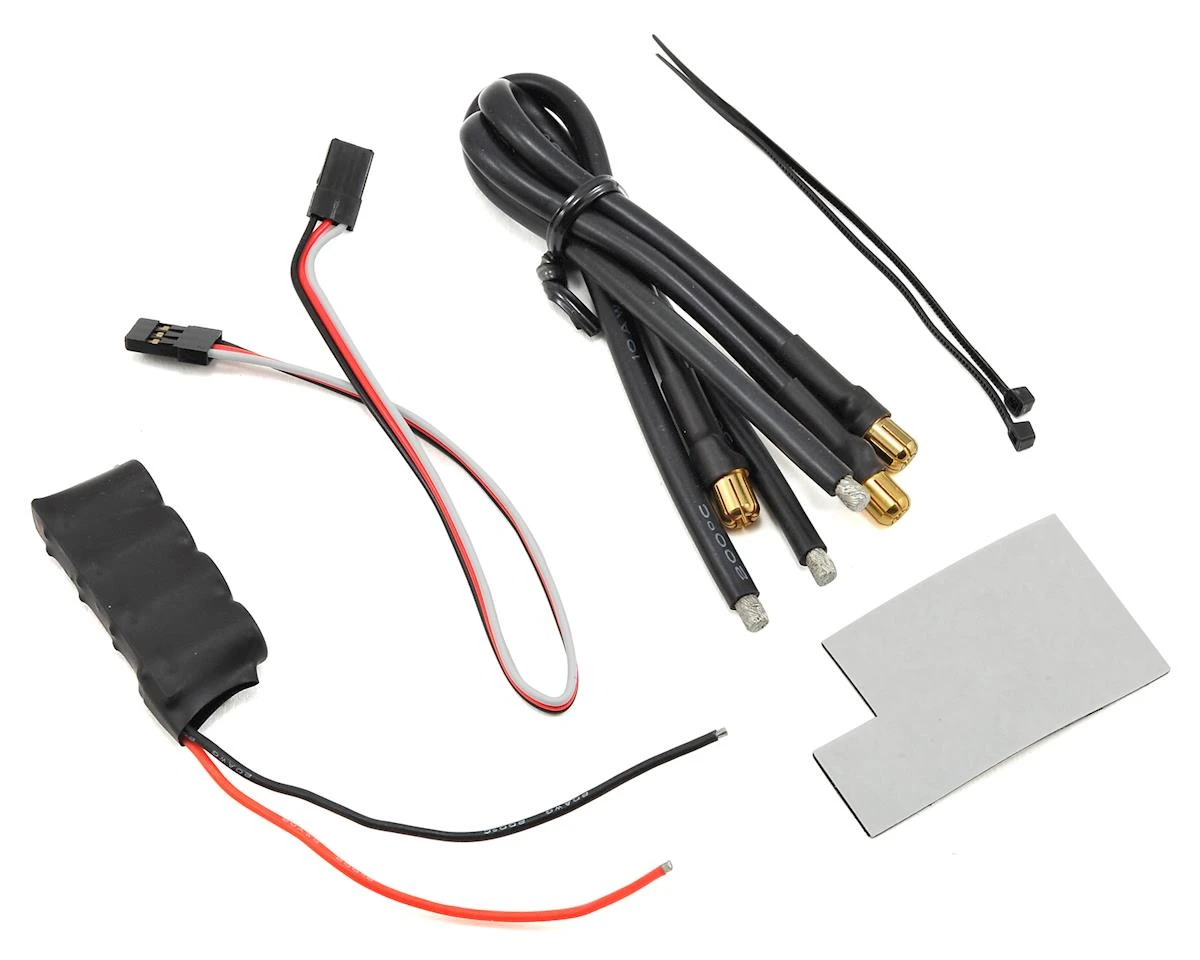

Accessories (double sided tape, etc)

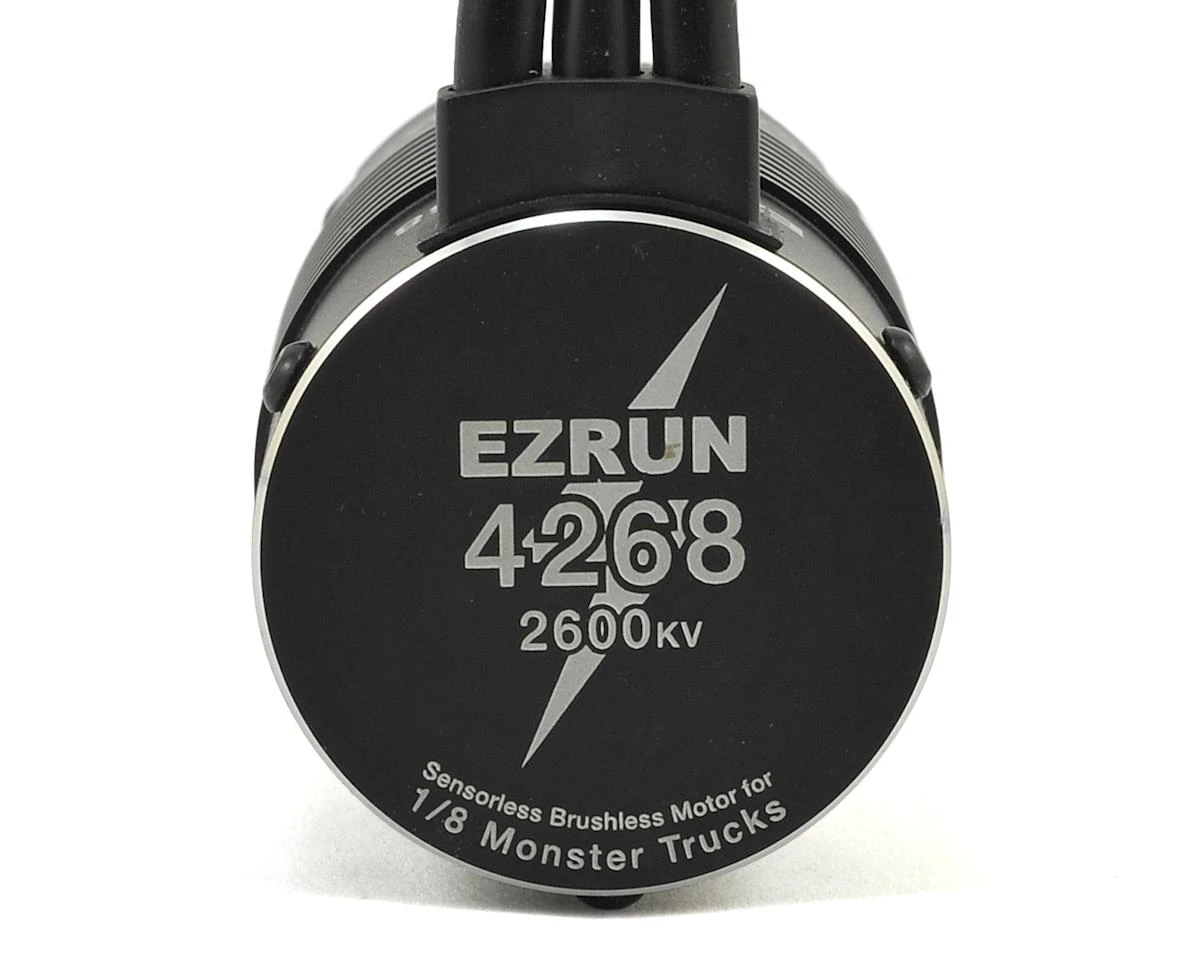

4268SL – 2600kV Brushless Sensorless motor

Installation Tips:

How to Mount the Motor into a RC vehicle. M3/M4 mounting screws (4*M3 & 4*M4) are needed here, as the mounting holes are 8mm in depth, so we don’t recommend using the M3/M4 screws with the length exceeds 10mm to mount the motor into your vehicle. (Note: please choose the right mounting screws as per your chassis.) Please choose the right mounting screws as per your chassis.
How to Connect the Motor to an ESC. There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
Recheck the Installation & Connections. Recheck the installation and all the connections before turning on the power.
